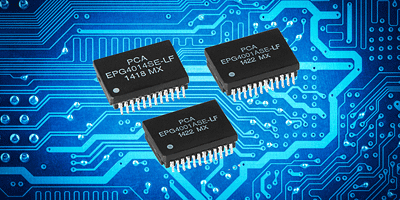

	EPG4001AS - A completely integrated transfer molded Gigabit isolation transformer with enhanced common mode to attenuate EMI. Approved for Marvell Semiconductor
and Broadcom PHYs. Meets all IEEE802.3 requirements for 10/100/1000 BaseT including 350 µH / 8mA DC Bias.


	PCA Offers a wide variety of custom and standard magnetics for LAN, Telecom and power applications.
If you have an application in mind, PCA can help you design a component for it!


Our updated Short Form Catalog is available online! Download a .pdf copy now or use our request form to receive a copy.



PCA has available a NEW series of very small Power over Ethernet(PoE/Powered Devices). EPC3248G-XX - Support for all PoE/PD classifications. Lead-free versions available.		EPC3391G Low Profile SMD, EPC 3393 Through Hole and EPC3394G SMD are designed for Linear Tech LT1725 for 45 watts application at switching frequency of 200 kHz.



	Our individual product line catalogs are now available in a .pdf downloadable format.
Chokes Inductors Networking Transformers



	PCA introduces a new line of 8 Photoflash Flyback Transformers ideal for use in Digital or Film Camera Flashes, PDA or Cell Phone Flashes, Emergency Strobe and other High Voltage DC-DC Converter applications.			PCA introduces one of the world's smallest high
			voltage trigger coils in a tiny Surface Mount package. For use in Flashlamps, Ionizers and Strobelights. Available as small as a 2.5mm max. height.



PCA debuts a new series of 500mW unregulated DC-DC Converters for commercial and medical applications. All models operate at a very high efficiency of between 80%-88%. Select models have 4KVrms isolation.



PCA introduces two NEW series of Active Power Factor Correction (PFC) Boost Inductors for use in CCM or DCM modes. EPC3245-XX & EPC3246-XX (with auxiliary windings) have a 4.5Kvms isolation between Faraday shield and windings. Operates at up to 100% duty cycle.		PCA offers a wide variety of power input/output inductors, switching transformers, and power input and output common mode filter/chokes to reduce EMI. We also offer current sense transformers with different ratios to meet your needs. PCA specializes in custom designs. Please contact us with any of your design requirements. You are also welcome to use our custom magnetic work sheet by clicking here.

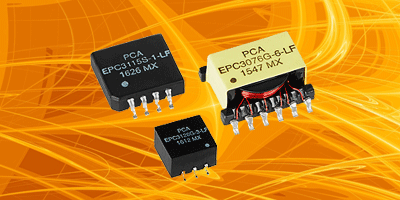

Low Power Push-Pull Transformers for DC-DC Converters. EPC3115S-X and EPC3117S-X
	for the Maxim MAX253, MAX3535E & MAX845 and EPC3126G-X , EPC3126-X with a 4.5K Vrms isolation.



EPT7003, a low cost, 4 line common mode choke used for EMI attenuation, is perfect for most LAN, Telecom and Datacom applications.



	PCA debuts its line of 11 new Surface Mount and Thru-Hole Power Inductors designed for National Semicon's Simple Switcher LM259X, LM267X and LM257X series. All models will work up to a 500Khz switching frequency and use a low core loss material for higher efficiency and a Toroid Design to reduce stray electromagnetic emissions.

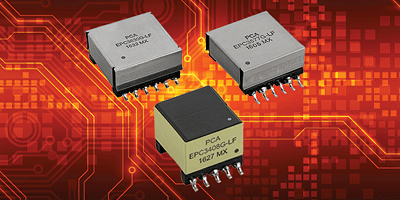

Our new series of SMPS Flyback transformers are guaranteed to meet a 4.5 KVrms isolation voltage. EPC3127-X , EPC3129-X , EPC3130-X , EPC3132-XA & EPC3133-X.
